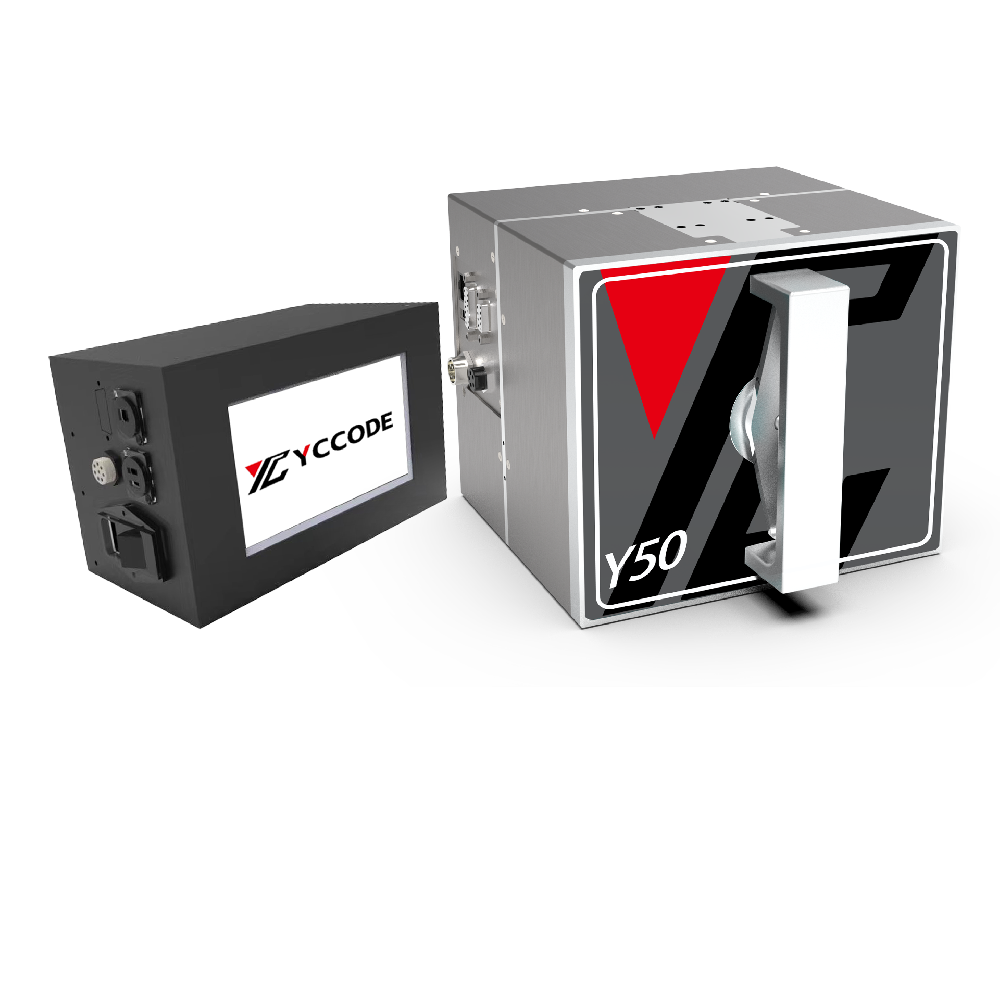

The YCCODE Thermal Transfer Overprinter (TTO) is a highly efficient and precise industrial printing device widely used in the packaging lines of industries such as food,

pharmaceuticals, and cosmetics. The machine employs thermal transfer technology to accurately transfer ink from a ribbon onto various packaging materials like plastic films, paper, and aluminum foil.

#### I. Working Principle

The working principle of the YCCODE Thermal Transfer Overprinter can be outlined in the following steps:

1. **Heating the Printhead**:

   - The core of the YCCODE TTO is its high-precision printhead. The printhead contains resistive elements that, when powered,

 rapidly heat up to the required temperature range (typically between 100°C and 300°C, depending on the ribbon and material).

2. **Ink Layer Transfer**:

   - As the printhead heats up and contacts the ribbon, pressure is applied. The heat-sensitive layer on the ribbon melts,

and the ink is transferred onto the surface of the packaging material. The YCCODE printer precisely controls the heat and timing of each pixel, ensuring clear and durable printed images or text.

3. **Cooling and Solidifying**:

   - After the printing process, the ink on the packaging material quickly cools and solidifies, creating a wear-resistant and long-lasting print.

#### II. Detailed User Guide

1. **Installation and Setup**

   - **Equipment Installation**:

     - Install the YCCODE Thermal Transfer Overprinter at the designated position on the production line,

ensuring the correct distance between the printhead and the packaging material (generally recommended between 1-3 millimeters).

     - Load the ribbon onto the machine, ensuring a smooth path without wrinkles or slack.

     - Connect the power supply and adjust the height and angle of the machine as needed for the production line.

   - **Power and Interface Connection**:

     - Connect the machine to a stable power source.

     - If required, connect the TTO to an external control system or computer for data import or remote operation.

2. **Setting Printing Parameters**

   - **Content Setup**:

     - Use the control panel or an external computer to set the desired printing content, including production dates, batch numbers, barcodes, QR codes, and company logos.

     - Input or edit the print content through the YCCODE software and preview the results.

   - **Adjusting Print Parameters**:

     - Set the appropriate printing temperature and pressure according to the properties of the packaging material (such as thickness and type).

Typically, thinner materials require lower temperatures and pressure, while thicker materials need higher settings.

     - Set the printing speed to match the production line speed to ensure synchronized printing on the packaging material.

   - **Choosing the Print Mode**:

     - The YCCODE TTO supports various print modes, including continuous and intermittent printing.

Select the appropriate mode based on the operation of the production line.

3. **Test Run and Adjustment**

   - **Test Printing**:

     - Conduct a test print before starting full production to check if the print content is clear and aligned, and to ensure there is no offset or blurring.

     - If issues are found, adjust the printhead position, temperature, pressure, or ribbon tension to optimize the print quality.

   - **Calibration and Optimization**:

     - Use the calibration functions of the YCCODE printer to ensure accurate alignment of the print content with the packaging material.

     - Make necessary fine-tuning adjustments to maintain consistent print quality during high-speed production.

4. **Daily Operation and Maintenance**

   - **Operating Procedures**:

     - Check the machine’s status before and after each use to ensure it is functioning correctly. Make sure the printhead is clean and free of ink residue.

     - Regularly clean the printhead to remove any carbon build-up or ink debris that could affect print quality.

     - Inspect the ribbon regularly and replace it when it is nearly depleted.

   - **Maintenance**:

     - Perform a thorough cleaning once a week, focusing on the printhead, transmission components, sensors, and other critical parts.

     - Periodically calibrate the machine to ensure the accuracy of printing parameters and the stability of the equipment.

     - Keep the machine in a clean and well-ventilated environment to avoid the effects of dust and moisture on the equipment.

5. **Ribbon Replacement**

   - **Replacement Steps**:

     - When the machine alerts that the ribbon is nearly depleted, pause the production line.

     - Open the ribbon compartment of the YCCODE TTO and carefully remove the used ribbon.

     - Install the new ribbon, ensuring it is flat and without wrinkles, and follow the directional arrows for proper installation.

     - Adjust the ribbon tension to ensure smooth operation during printing, without slipping or wrinkling.

   - **Precautions**:

     - Avoid touching the printing side of the ribbon with your hands during replacement to prevent oil or sweat from affecting print quality.

     - After each ribbon replacement, conduct a test print to ensure the print quality meets the required standards.

By correctly installing, setting up, and maintaining the YCCODE Thermal Transfer Overprinter,

 you can ensure stable, high-quality printing on your production line. For more detailed operational guidance or support,

please refer to the YCCODE device user manual or contact YCCODE's technical support team.
