Introduction to UV laser machine

UV Laser Printer

UV laser marking machines use ultraviolet laser beams to mark the surface of objects and use cold processing, that is, photochemical reactions, to break the chemical bonds of the material and achieve non-thermal process destruction.

*No consumables

*No maintenance required

*Online flying printing & static printing

*Mainly using for white opaque plastic bottle, plastic films

Parameter

Product name	Co2 laser machine	Fiber laser machine	UV laser machine
Laser Power	40W / 60W	30W / 50W	3W / 5W / 10W
Laser Wavelength	10600/10200/9300nm	1064nm	355nm
Cooling system	Air cooling	Air cooling	Water cooling
Size and weight	*Bracket: 2535133cm, 23kg* *Machine: 993744cm, 35kg*	*Bracket: 2535133cm, 23kg* *Machine: 993744cm, 35kg*	*Bracket: 2535133cm, 23kg* water tank: *643650cm, 24kg* *Machine: 783630cm, 23kg*
Coding Speed	≤13000mm/s (depend on marking content and material)
Control screen	10-inch touch screen
Lens	*Standard:110mm110mm, Max: 650mm650mm(Optional)*
Line Speed	0-500m/min (Depend on package and print content)
Positioning	Red light positioning(Optional)
Power Supply	AC220V 50/60HZ
Working Environment	Temperature:0-40 Humidity:10-90%(non-condensing
Coding Method	High-speed scanning system
File Format	BMP/DXF/HPGL/JPEG/PLT
Bar code QR Code	CODE39,CODE128,CODE126,QR,DM,etc
Language	English, Russian, Korean, Spanish etc
Interface	RS232/USB/Ethernet

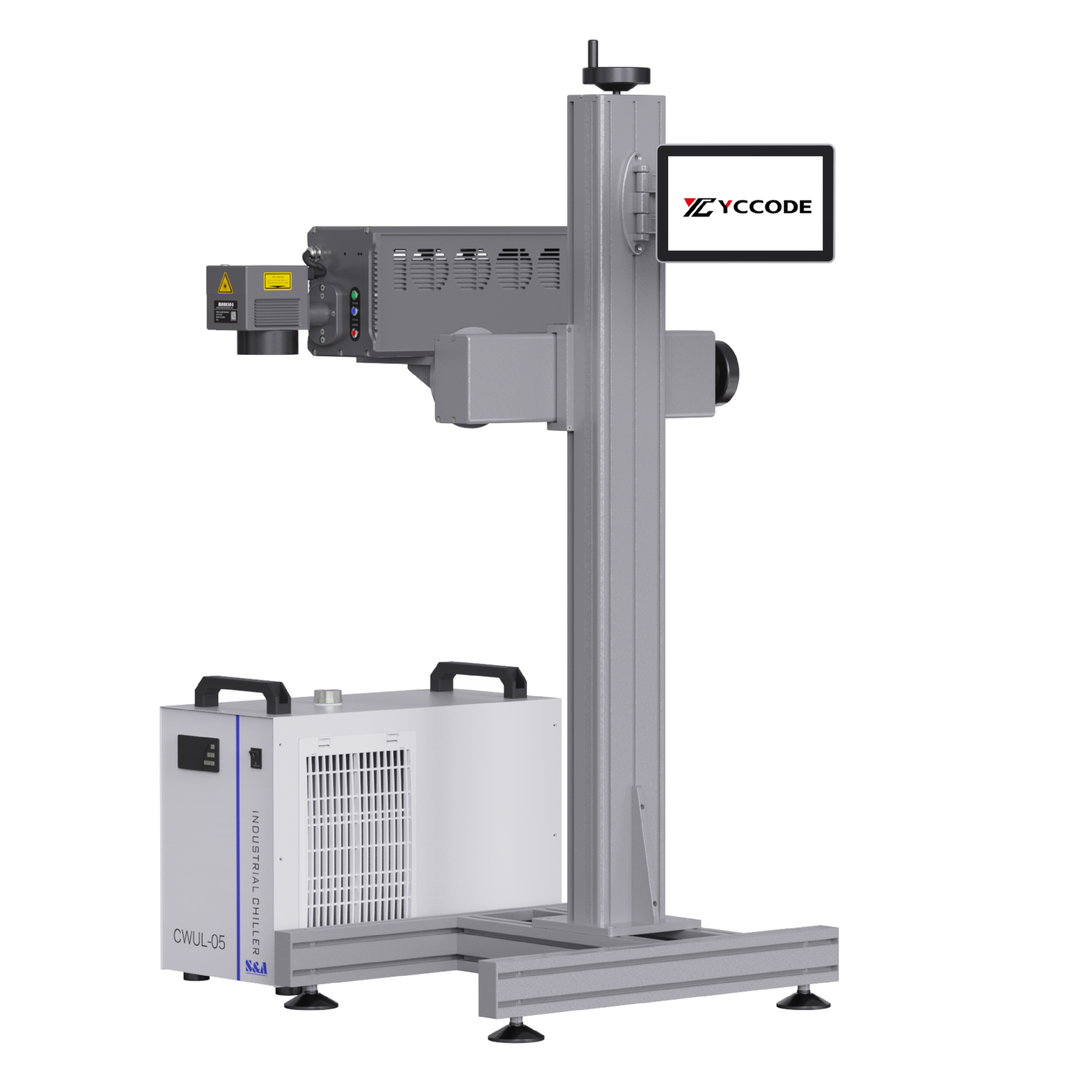

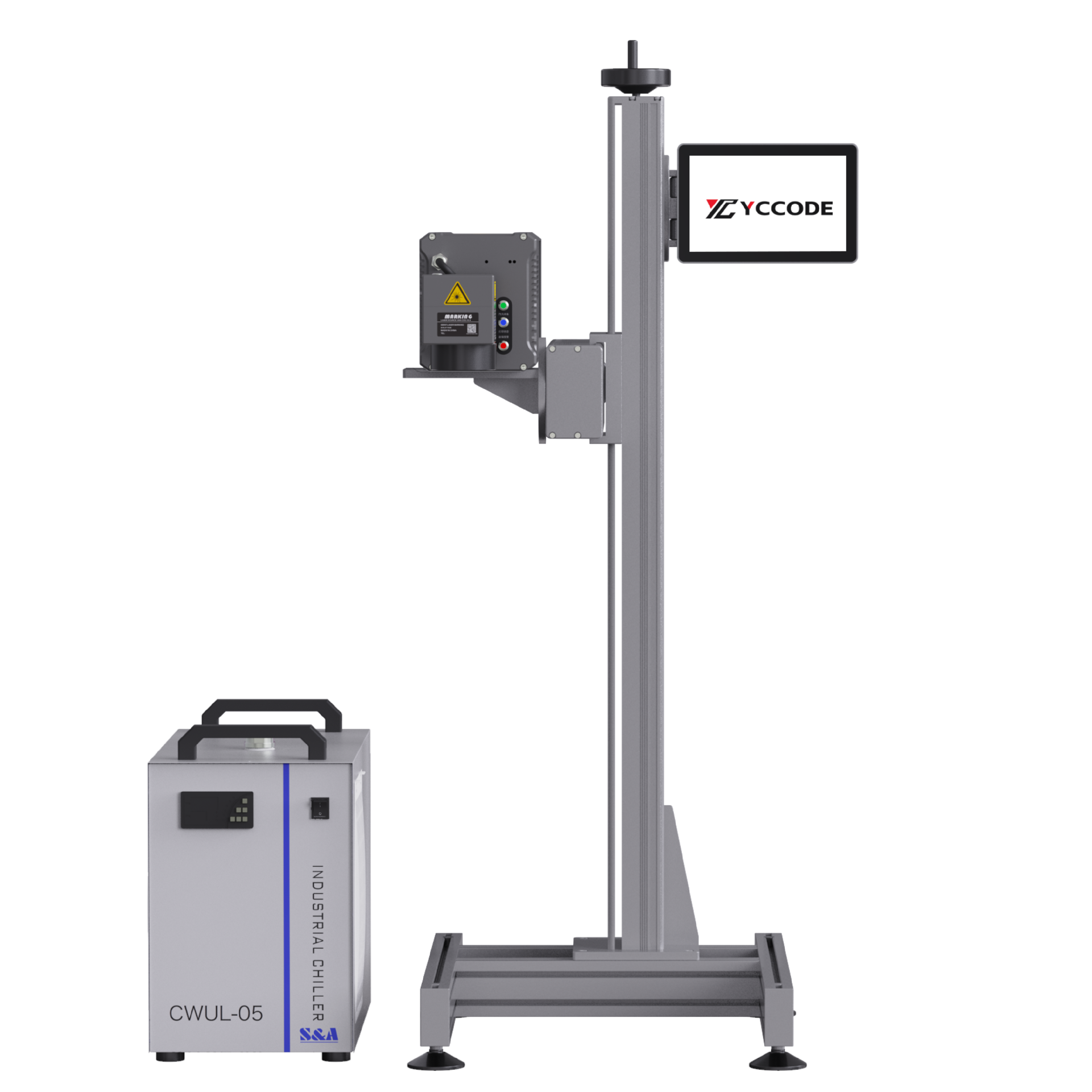

UV laser machine

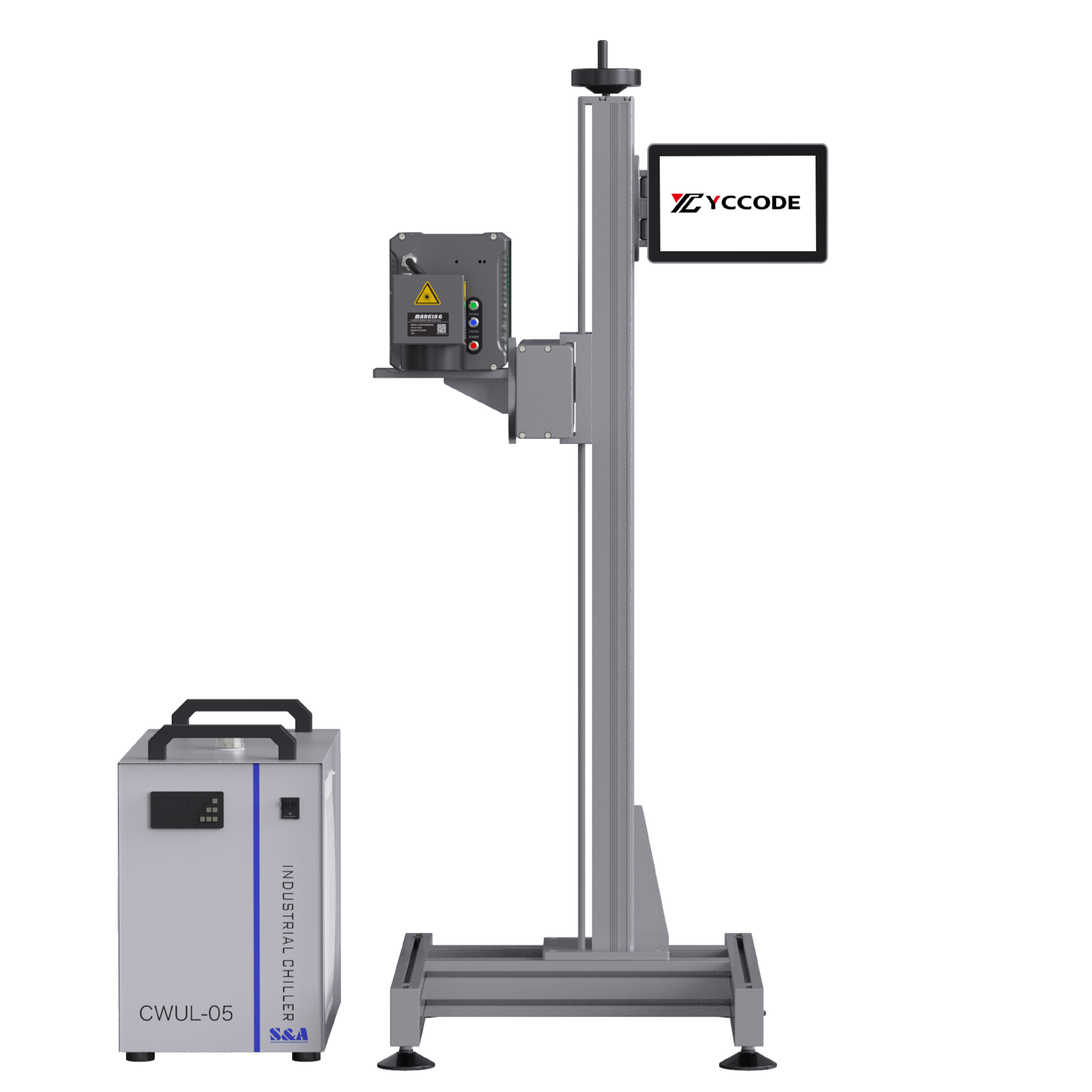

UV laser machine
