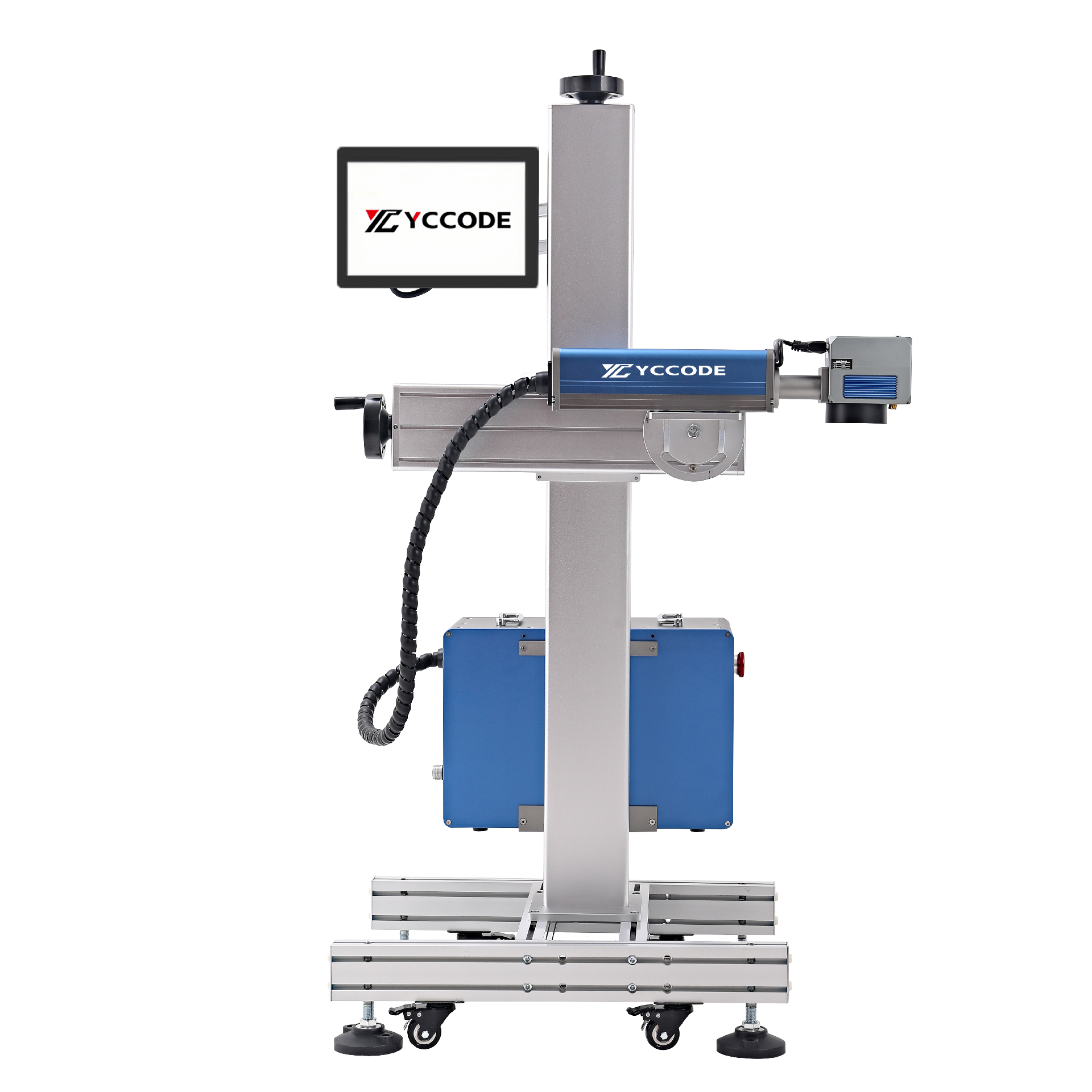

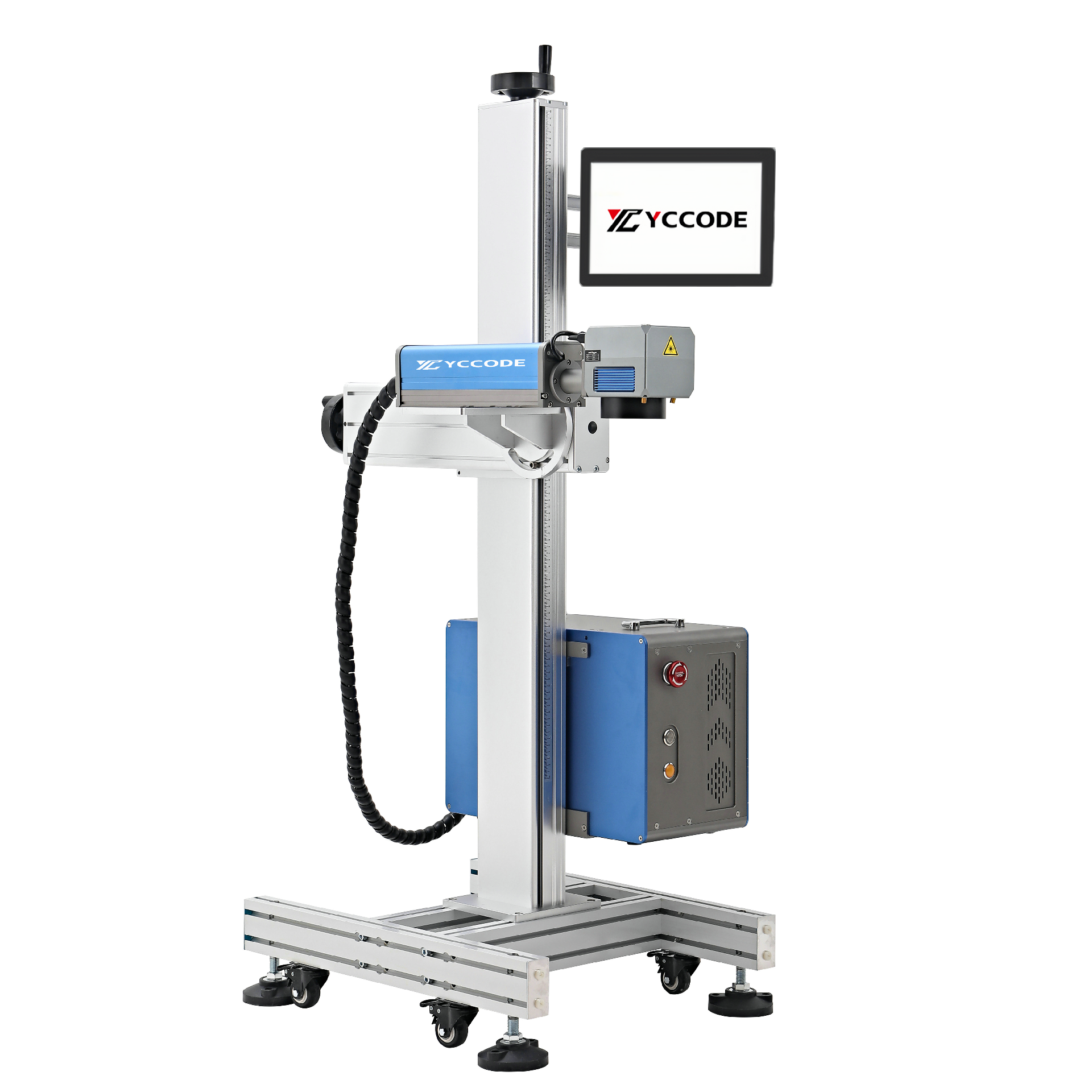

Split fiber laser machine

Split fiber laser machine

The fiber laser marking machine uses the laser beam emitted by the fiber laser to mark the surface of the object. The high-energy-density laser beam irradiates the surface of the workpiece, causing the surface material to quickly vaporize or change color, thereby carving out traces.

Fiber Laser Printer

The fiber laser marking machine uses the laser beam emitted by the fiber laser to mark the surface of the object. The high-energy-density laser beam irradiates the surface of the workpiece, causing the surface material to quickly vaporize or change color, thereby carving out traces.



*No consumables

*No maintenance required

*Online flying printing & static printing

*Mainly using for metal etc



Parameter

Product name

Co2 laser machine

Fiber laser machine

UV laser machine

Laser Power

40W / 60W

30W / 50W

3W / 5W / 10W

Laser Wavelength

10600/10200/9300nm

1064nm

355nm

Cooling system

Air cooling

Air cooling

Water cooling

Size and weight

Bracket: 25*35*133cm, 23kg

Machine: 99*37*44cm, 35kg

Bracket: 25*35*133cm, 23kg

Machine: 99*37*44cm, 35kg

Bracket: 25*35*133cm, 23kg

water tank:

64*36*50cm, 24kg

Machine: 78*36*30cm, 23kg

Coding Speed

≤13000mm/s (depend on marking content and material)

Control screen

10-inch touch screen

Lens

Standard:110mm*110mm, Max: 650mm*650mm(Optional)

Line Speed

0-500m/min (Depend on package and print content)

Positioning

Red light positioning(Optional)

Power Supply

AC220V 50/60HZ

Working Environment

Temperature:0-40 Humidity:10-90%(non-condensing

Coding Method

High-speed scanning system

File Format

BMP/DXF/HPGL/JPEG/PLT

Bar code QR Code

CODE39,CODE128,CODE126,QR,DM,etc

Language

English, Russian, Korean, Spanish etc

Interface

RS232/USB/Ethernet
